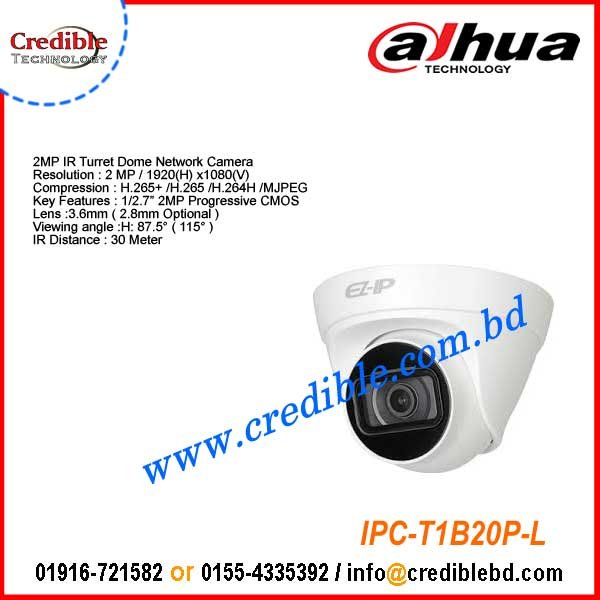

IPC-T1B20-L – Dahua EZ IP Dome Camera
$ 27.75
IPC-T1B20-L 2MP IR Turret Network Camera > 1/2.7” 2 Megapixel progressive CMOS > H.265 & H.265 dual-stream encoding > 20fps@1080P(1920×1080) & 25/[email protected](1280×960) > DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 2.8 mm fixed lens (3.6mm optional) > Max IR LEDs Length 30m > IP67, PoE IPC-T1B20-L – Dahua EZ IP Dome Camera – Dahua Security Technical Specification Camera Image Sensor 1/2.7” 2Megapixel progresive CMOS Effective Pixels 1920(H) x1080(V) RAM/ROM 64MB/16MB Scanning System Progressive Minimum Illumination 0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) S/N Ratio More than 50dB IR Distance Distance up to 30m(98ft) IR On/Off Control Auto/ Manual IR LEDs 1 Lens Lens Type Fixed Mount Type Board-in Focal Length 2.8 mm (3.6 mm optional) Max. Aperture F2.0/F2.0 Angle of View H:115°/87.5°, V:60°/47° Focus Control Fixed Close Focus Distance 0.5m(1.64ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft) 3.6 mm 53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft) PTZ Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° Video Compression H.265/H.264H/MJPEG(Sub Stream) Smart Codec Support H.265 /H.264 Streaming Capability 2 Streams Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) Frame Rate Main Stream: 1080P (1 ~ 20fps) Sub Stream: D1(1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H265:12K~5632K H.264:32K ~8192K Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / DWDR White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Electronic Image Stabilization (EIS) N/A Smart IR Support Digital Zoom 16x Flip 0°/90°/180°/270° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression N/A Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;NTP;Multicas; ICMP; TLS Interoperability ONVIF Profile S&G Streaming Method Unicast / Multicast Max. User Access 10 Users/20 Users Edge Storage N/A Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS,DMSS Smart Phone IOS, Android Certifications Certifications CE: (EN 60950:2000) FCC: FCC Part 15 Subpart B Interface Video Interface N/A Audio Interface N/A RS485 N/A Alarm N/A Electrical Power Supply DC12V, PoE (802.3af)(Class 0) Power Consumption <4.8W Environmental Operating Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH Strorage Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Construction Casing Metal Plastic Dimensions Φ109mm×85.5mm(4.29”x3.36”) Net Weight 0.24Kg(0.53lb) Gross Weight 0.36Kg(0.79lb)
