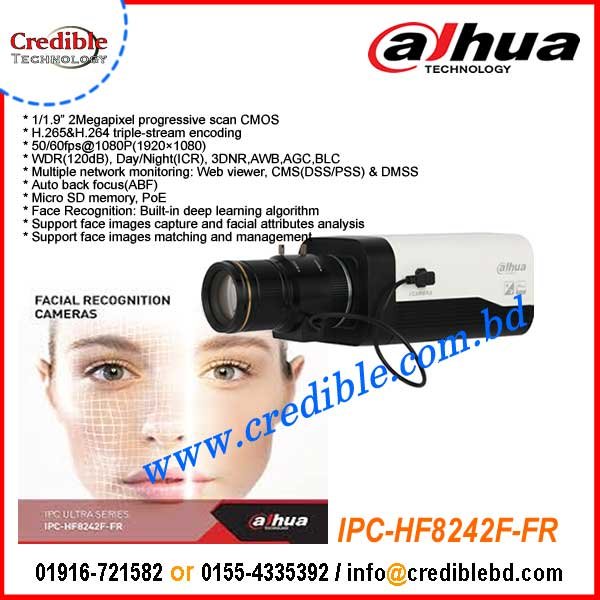

IPC-HF8242F-FR Dahua face detection Camera

IPC-HF8242F-FR Dahua face detection Camera 2MP Starlight Face Recognition Box Network Camera Features :  > 1/1.9” 2 Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding > 50/60fps@1080P(1920×1080) > WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > Auto back focus(ABF) > Micro SD memory, PoE > Face Recognition: Built-in deep learning algorithm Support face images capture and facial attributes analysis Support face images matching and management Tech Specification Camera Image Sensor 1/1.9” 2Megapixel progressive scan CMOS Effective Pixels 1920(H)x1080(V) Scanning Sysem Progressive Electronic Shutter Speed Auto/Manual, 1/3~1/100000s  Minimum Illumination 0.001Lux/F1.2 (Color,1/3s,30IRE) 0.01Lux/F1.2(Color,1/30s,30IRE) 0.0005Lux/F1.2 (B/W,1/3s,30IRE) 0.005Lux/F1.2 (B/W,1/30s,30IRE) S/N Ratio More than 50dB Lens Lens Type & Length N/A Max. Aperture N/A Angle of View N/A Close Focus Distance N/A Intelligence IVS Tripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent Functions Face Recognition: Support face images matching, support up to 10000 face images and 5 image libraries management; Face Detection: Support 6 kinds of facial features extraction: Age, Gender, Expression(Jolly, Calm, Surprise, Sad, Rage), Glasses, Mask, Moustache; People Counting, Heat Map Video Compression H.265 /H.265/H.264 /H.264 Streaming Capability 3 Streams Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) Bit Rate Control CBR/ VBR Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / WDR(120dB)/ SSA White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of interest Off / On (4 Zone) Flip 0°/90°/180°/270° Defog Support Network Ethernet RJ-45 (100/1000Base-T) Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Interoperability ONVIF, PSIA, CGI Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS, Easy4ip Common details Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B Video Interface 1 port(BNC,1Vp-p,75Ω ) Audio Interface 2/1 channel In/Out, 1 Built-in Mic RS485 1 Port Alarm 2 channel In: 5mA 5VDC 2 channel Out: 1A 30VDC / 0.5A 50VAC Power Supply DC12V, AC24V, PoE(IEEE802.3af)(Class 0) Power Consumption < 10W Casing Metal Smart Phone IOS, Android
